侧拉吊环

公制螺纹产品编号 NO.工作载荷WLL/T螺纹 M技术参数mm锁紧扭矩Nm净重KgEABCDFGLNSSWBLT081-M80.3M8x125113437421498.55742.53161310-400.5BLT081-M100.63M10x1.5163437441498.55740.53161610-400.5BLT081-M121M12x1.75183437451498.55739.5318

详细信息

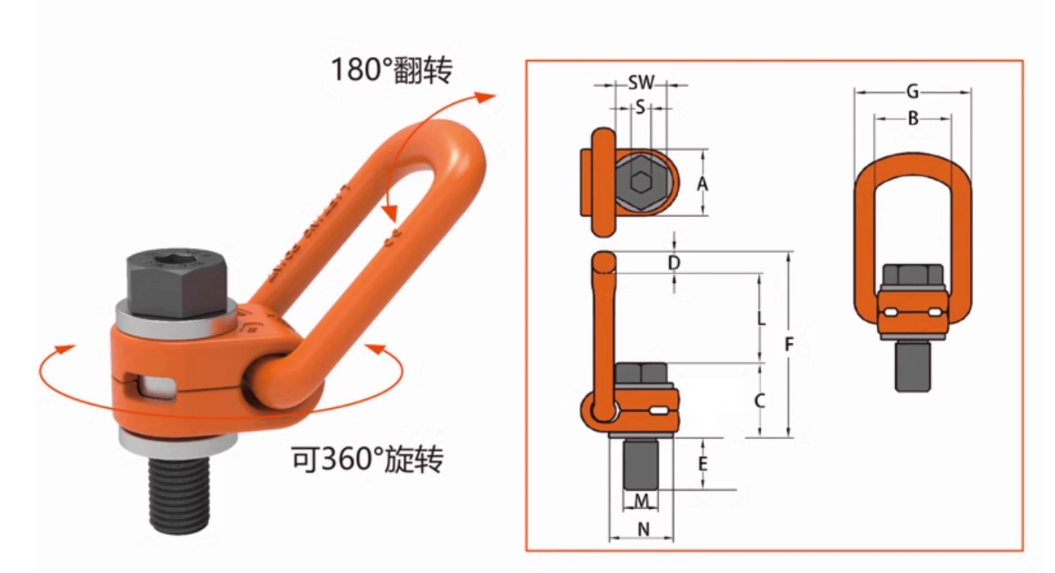

图片关键词

公制螺纹

产品编号 NO.	工作载荷WLL/T	螺纹 M	技术参数mm											锁紧扭矩Nm	净重Kg
产品编号 NO.	工作载荷WLL/T	螺纹 M	E	A	B	C	D	F	G	L	N	S	SW	锁紧扭矩Nm	净重Kg
BLT081-M8	0.3	M8x125	11	34	37	42	14	98.5	57	42.5	31	6	13	10-40	0.5
BLT081-M10	0.63	M10x1.5	16	34	37	44	14	98.5	57	40.5	31	6	16	10-40	0.5
BLT081-M12	1	M12x1.75	18	34	37	45	14	98.5	57	39.5	31	8	18	15-40	0.5
BLT081-M14	1.2	M14x2.0	21	34	37	48	14	98.5	57	36.5	31	10	24	30-100	0.5
BLT081-M16	1.5	M16x2.0	24	34	37	48	14	98.5	57	36.5	31	10	24	45-130	0.5
BLT081-M18	2	M18x2.5	26	50	54	58	16.5	143	82	68.5	45	12	30	100-170	1.5
BLT081-M20	2.5	M20x2.5	30	50	54	58	16.5	143	82	68.5	45	12	30	100-170	1.5
BLT081-M22	3	M22x2.5	30	50	54	61	16.5	143	82	65.5	45	14	36	100-170	1.5
BLT081-M24	4	M24x3.0	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280	1.5
BLT081-M27	4	M27x3.0	38	60	65	82	22	170	99	66	59	17	46	250-500	3
BLT081-M30	5	M30x3.5	48	60	65	82	22	170	99	66	59	17	46	270-600	3.5
BLT081-M33	6	M33x3.5	54	60	65	85	22	170	99	63	59.5	22	SS	270-600	3.5
BLT081-M36S	7	M36x4.0	54	60	65	85	22	170	99	63	59.5	22	55	270-600	3.5
BLT081-M36B	8	M36x4.0	62	77	85	104	27	2265	123	95.5	69	22	5S	270-600	6
BLT081-M39	8	M39x4.0	62	77	85	104	27	2265	123	95.5	69	22	55	350-800	6
BLT081-M42S	10	M42x4.5	72	77	85	106	27	226.5	123	93.5	69	22	65	350-800	6.5
BLT081-M42B	15	M42x4.5	63	95	104	117	36	2575	158	104.5	98	22	65	350-800	11
BLT081-M45	15	M45x4.5	63	95	104	117	36	2575	158	104.5	98	22	65	350-800	11
BLT081-M48	20	M48x5.0	72	95	104	120	36	2575	158	101.5	98	27	75	350-800	12
BLT081-M52	20	M52x5.0	72	95	10-4	117	36	2575	158	104.5	98	27	75	350-900	12
BLT081-M56	22	M56x5.5	84	95	104	117	36	2575	158	104.5	98	27	85	350-900	15
BLT081-M64	22.5	M64x6.0	100	114	104	138	36	266	158	92	109	32	95	500-1000	16.3

美制螺纹

产品编号 NO.	工作载荷WLL/T	螺纹		技术参数mm											锁紧扭矩	净重
产品编号 NO.	工作载荷WLL/T	M	TPI	E	A	B	C	D	F	G	L	N	S	SW	Nm	Kg
BLT081-3/8	0.63	3/8	16	16	34	37	43	14	98.5	57	41.5	31	6	16	10-40	0.5
BLT081-1/2	1	1/2	13	21	34	37	45	14	985	57	39.5	31	8	18	15-40	0.5
BLT081-5/8	1.5	5/8	11	24	34	37	48	14	98.5	57	36.5	31	10	24	45-130	0.5
BLT081-3/4	2.5	3/4	10	26	50	54	58	16.5	143	82	68.5	45	12	30	45-130	1.5
BLT081-7/8	2.5	7/8	9	30	50	54	61	16.5	143	82	65.5	45	14	36	100-170	1.5
BLT081-1	4	1	8	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280	1.5
BLT081-1-1/4	5	1-1/4	7	48	60	65	80	22	174	99	72	59.5	17	46	270-600	3.5
BLT081-1-1/2	8	1-1/2	6	62	77	85	104	27	226.5	123	95.5	69	22	55	270-600	6
BLT081-1-3/4	15	1-3/4	5	63	95	104	116	36	2575	158	105.5	98	22	65	350-800	11
BLT081-2	20	2	45	72	95	104	112	36	2575	158	109.5	98	27	75	350-800	12
