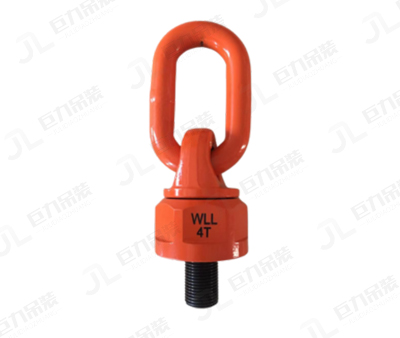

万向旋转吊环

公制螺纹规格工作载荷WLL/T螺纹 M技术参数／mm锁紧扭矩Nm净重KgEA±2B±3CDKGF±3M80.4M8x1.25123043.55412374097.510-400.44M100.6M10x1.5193043.55412374097.510-400.45M12S0.7M12x1.75193043.55412374097.515-400.45M141.25M14x2.031.83043.

详细信息

图片关键词

公制螺纹

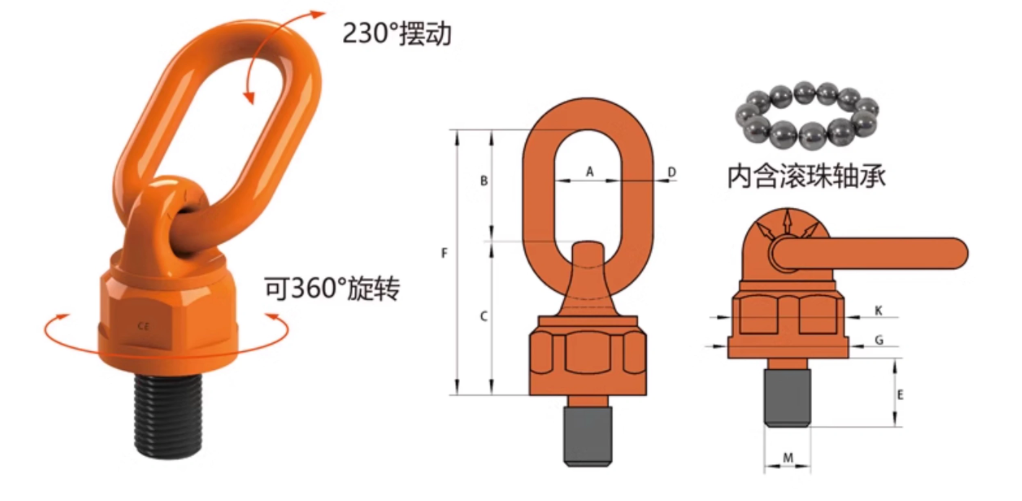

规格	工作载荷WLL/T	螺纹 M				技术参数／mm					锁紧扭矩Nm	净重Kg
规格	工作载荷WLL/T	螺纹 M	E	A±2	B±3	C	D	K	G	F±3	锁紧扭矩Nm	净重Kg
M8	0.4	M8x1.25	12	30	43.5	54	12	37	40	97.5	10-40	0.44
M10	0.6	M10x1.5	19	30	43.5	54	12	37	40	97.5	10-40	0.45
M12S	0.7	M12x1.75	19	30	43.5	54	12	37	40	97.5	15-40	0.45
M14	1.25	M14x2.0	31.8	30	43.5	54	12	37	40	97.5	30-100	0.45
M16S	1.5	M16x2.0	31.8	30	43.5	54	12	37	40	97.5	45-130	0.48
M12B	1.05	M12x1.75	19	34	54.5	78	16	54.5	59	133	15-40	1.15
M168	1.9	M16x2.0	30	34	54.5	78	16	54.5	59	133	45-130	1.35
M18S	1.9	M18x2.5	30	34	54.5	78	16	54.5	59	133	100-170	1.35
M20S	2	M20x2.5	30	34	54.5	78	16	54.5	59	133	100-170	1.4
M22S	2	M22x2.5	30	34	54.5	78	16	54.5	59	133	100-170	1.4
M24S	3.15	M24x3.0	30	34	54.5	78	16	54.5	59	133	190-280	1.4
M18B	2	M18x2.5	38.1	40	67	93	20	64.5	70	160	100-170	2.3
M208	2.5	M20x2.5	38.1	40	67	93	20	64.5	70	160	100-170	2.3
M22B	2.5	M22x2.5	38.1	40	67	93	20	64.5	70	160	100-170	2.35
M24B	4	M24x3.0	38.1	40	67	93	20	64.5	70	160	190-280	2.35
M27	4	M27x3.0	38.1	40	67	93	20	64.5	70	160	250-500	2.35
M30S	5	M30x3.5	35	40	67	93	20	6-4.5	70	160	270-600	2.5
M30B	6	M30x3.5	50	51	95	111	22	74	79	206	270-600	3.75
M33	7.5	M33x3.5	50	51	95	111	22	74	79	206	270-600	3.8
M36	10	M36x4.0	54	51	95	111	22	74	79	206	270-600	3.9
M39	10	M39x4.0	58	51	95	111	22	74	79	206	350-800	4
M42	13	M42x4.5	63	65	108	122.5	26	85	93	231	350-800	5.9
M45	13	M45x4.5	68	65	108	122.5	26	85	93	231	350-800	6
M48	14	M48x5.0	68	65	108	122.5	26	85	93	231	350-800	6.15
M56	20	M56x5.S	84	70	120	158	32	95	105	278	350-900	10
M60	20	M60x5.5	90	70	120	158	32	95	105	278	350-900	10.5
M64	20	M64x6.0	95	70	120	158	32	95	105	278	500-1000	10.7
M72S	25	M72x6.0	103	80	123	210	40	142	158	333	500-1200	23

美制UNC螺纹

产品编号 ITEMNO.	工作载荷WLL/T	螺纹技术参数／mm										锁紧扭矩Nm	净重Kg
产品编号 ITEMNO.	工作载荷WLL/T	M	TPI	E	A±2	B±3	C	D	K	G	F±3	锁紧扭矩Nm	净重Kg
BLT083-3/8	0.6	3/8	16	19	30	43.5	54	12	37	40	975	10-40	0.5
BLT083-1/2S	0.7	1/2	13	19	30	43.5	54	12	37	40	975	15-40	0.5
BLT083-5/8S	1.5	5/8	11	31.8	30	43.5	54	12	37	40	975	45-130	0.5
BLT083-1/2B	1.05	1/2	13	19	34	54.5	78	16	54.5	59	132.5	15-40	1.15
BLT033-5/8B	1.9	5/8	11	30	34	54.5	78	16	54.5	59	132.5	45-130	1.35
BLT083-3/4S	1.9	3/4	10	30	34	54.5	78	16	54.5	59	132.5	45-130	1.4
BLT083-7/8S	2	7/8	9	30	34	54.5	78	16	54.5	59	132.5	100-170	1.4
BLT033-1S	3.15	1	8	30	34	54.5	78	16	54.5	59	132.5	190-280	1.4
BLT083-3/4B	2	3/4	10	38.1	40	67	93	20	64.5	70	160	45-130	2.5
BLT083-7/8B	2.5	7/8	9	38.1	40	67	93	20	64.5	70	160	100-170	2.5
BLT083-1B	4	1	8	38.1	40	67	93	20	64.5	70	160	190-280	2.5
BLT083-1-1/4	6	1-1/4	7	50	51	95	111	22	74	79	206	270-600	4
BLT083-1-1/2	10	1-1/2	6	54	51	95	111	22	74	79	206	270-600	4
BLT083-1-3/4	13	1-3/4	5	68	65	108	122.5	26	85	93	230.5	350-800	6
BLT083-2S	14	2	4.5	68	65	108	122.5	26	85	93	230.5	350-800	6.3
BLT033-2B	17	2	4.5	84	70	120	158	32	95	105	278	350-800	11
BLT083-2-1/4	20	2-1/4	4.5	84	70	120	158	32	95	105	278	350-900	11
BLT083-2-1/2	20	2-1/2	4	95	70	120	158	32	95	105	278	350-900	11
BLT083-3S	25	3	4	103	80	123	210	40	142	158	333	500-1400	23
